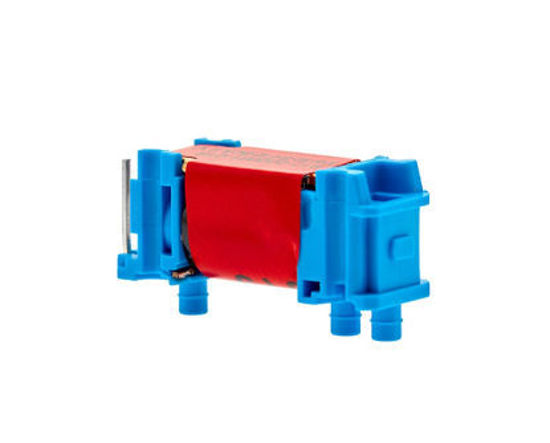

SwissQ X-Valve - Miniature Pneumatic Solenoid Valve - 912-000001-003

This Valve is suitable for Swissqprint Oryx printers. This is the original part (number 912-000001-003).

Technical Specifications

• Flow Rate: up to 6 SLPM
• Voltage (VDC): 12
• Maximum Flow Rate: 6 SLPM
• Maximum Operating Pressure: up to 30 psi, 2.0 bar
• Orifice Size: 0.030 inch, 0.75 mm
• Maximum Operating Temperature:122 °F, 50 °C
• Minimum Operating Temperature: 32 °F, 0 °C
• Function: 3-Way, Universal
• Cycles per Lifetime: up to 25 Million
• Actuation Type: Solenoid
• Operation Type: Electronic
• Valve Configuration Type: 3 Way Universal
• Control Method: Current or Voltage
• Power Consumption: 1.0 W
• Input Voltage: 12 VDC
• Electrical Connection: Long Pins
• Body Material: PBT (Polybutylene Terephthalate)
• Seal Material: FKM
• Length: 0.92 inch, 24 mm
• Width: 0.31 inch, 8 mm
• Elastomer Material: FKM
• Height: 0.35 inch, 9 mm
• Weight: 0.16 oz, 4.5 g
• Response Time: < 20 ms
• Leak Rate: < 0.016 cm3/min
• Port Connection: Barb
• Mounting Type: PC Pins, Manifold (Gasket Required)
• Application Pressure Requirement: 30 psi (.030 orifice)
• Connection Type: Retention Pin, Mounting Screw
• For Fluid Type: Gases
• Connection Size: 22 AWG (Retention Pin); 0-80 x 1/2 Binding Head, Phillips Screw
• Industry Application: Portable Equipment, Blood Pressure Monitoring, Wound Therapy, Air and Oxygen Delivery, Sensor Zeroing
• Configuration: n/a
• Electrical Connection: Long Pins
