Epson DX5 Printhead: Technical Specifications and Industrial Applications

Original Epson DX5 printhead (F152000) with Micro-Piezo tech, 1440dpi & 1.5–21pl droplets. Compatible with water-based, eco-solvent inks. Direct from Japan. Free shipping available.

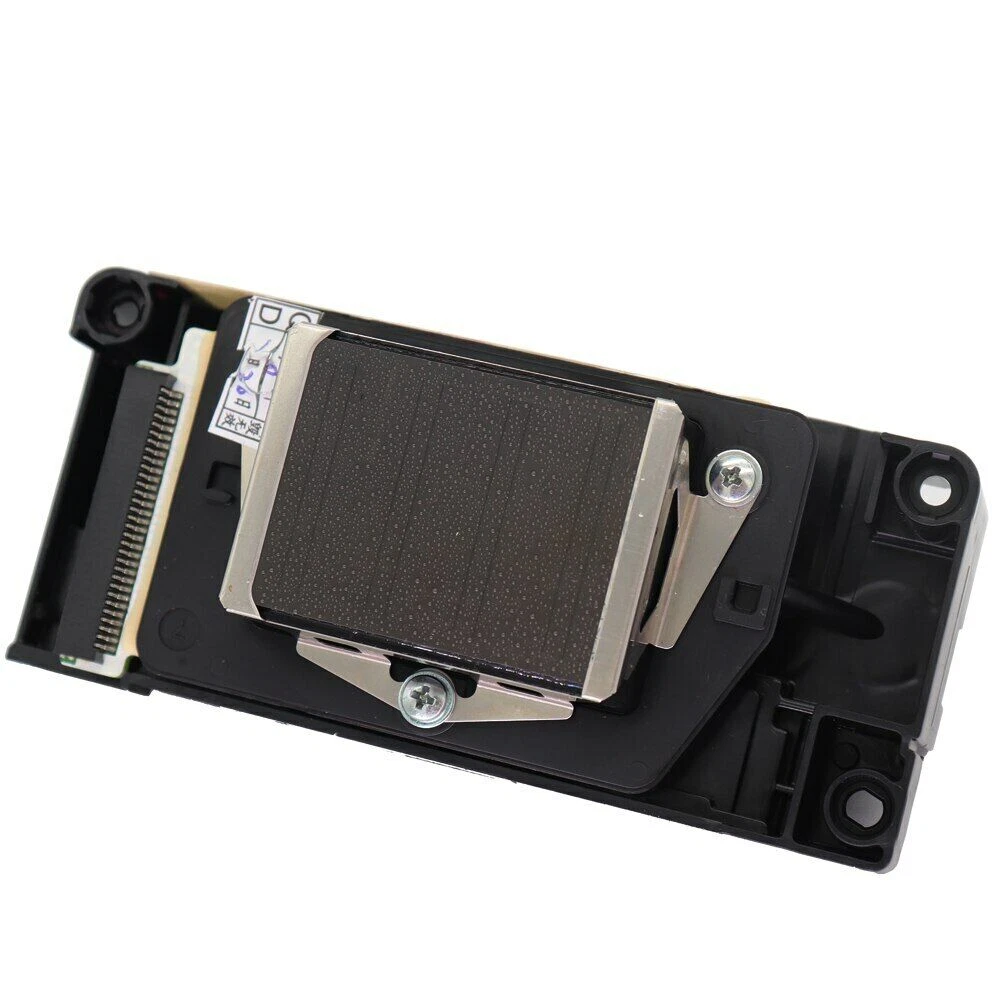

Epson DX5 Printhead Introduction

The Epson DX5 printhead is a versatile and reliable component widely used in various industrial printing applications. Known for its precision and durability, the DX5 printhead supports water-based, eco-solvent, and mild solvent inks, making it suitable for a broad range of printers. This article delves into the technical specifications and industrial applications of the Epson DX5 printhead, highlighting its features and benefits.

Epson DX5 Printhead Technical Specifications

Model: F152000

Technology: Micro-Piezo

Native Resolution: 1440 dpi

Minimum Droplet Size: 1.5 picolitres

Maximum Droplet Size: 21 picolitres

Total Number of Nozzles: 1440 (8 lines x 180 nozzles)

Firing Frequency: 8 kHz

Ink Compatibility: Water-based dye and pigment inks

Epson DX5 Printhead Detailed Specifications

• Micro-Piezo Technology: The DX5 printhead utilizes Epson's proprietary Micro-Piezo technology, which ensures precise ink droplet control and high-resolution output. This technology enables the printhead to produce sharp, vibrant prints with excellent color accuracy.
• High Native Resolution: With a native resolution of 1440 dpi, the DX5 printhead delivers exceptional print quality, making it ideal for applications that require fine detail and smooth gradations.
• Variable Droplet Sizes: The ability to produce droplets ranging from 1.5 to 21 picolitres allows the DX5 printhead to handle a variety of print tasks, from fine text and graphics to large-format images. This flexibility ensures optimal performance across different media types and print settings.
• Large Nozzle Array: The total number of nozzles (1440) arranged in eight lines of 180 nozzles each provides a wide coverage area, enabling fast and efficient printing. This design also contributes to the printhead's reliability and longevity.
• High Firing Frequency: Operating at a firing frequency of 8 kHz, the DX5 printhead can deliver rapid ink ejection, supporting high-speed printing without compromising on quality.
• Ink Compatibility: The DX5 printhead is compatible with water-based dye and pigment inks, offering versatility for various printing needs. Whether you're working with textiles, signs, or other materials, the DX5 printhead can handle it with ease.

Industrial Applications

The Epson DX5 printhead finds extensive use in numerous industrial applications due to its robust performance and compatibility with different ink types. Some key applications include:

• Textile Printing: The DX5 printhead is well-suited for direct-to-garment and fabric printing, delivering vibrant colors and durable prints on a variety of textile substrates.
• Signage and Banner Printing: For creating eye-catching signs, banners, and posters, the DX5 printhead offers the necessary resolution and speed to meet professional standards.
• Photo Printing: With its high native resolution and variable droplet sizes, the DX5 printhead excels in producing high-quality photographic prints, capturing every detail and nuance.
• Industrial Marking and Coding: The DX5 printhead can be employed for marking and coding applications, providing clear and legible text and graphics on product packaging and labels.

Important Considerations

While the Epson DX5 printhead is a highly capable and reliable component, there are certain considerations to keep in mind:

• Compatibility: The DX5 printhead is not compatible with Mutoh Valuejet or Mimaki JV33 / JV5 printers, which use different printheads (DF-49684 and PPHMIJV5006, respectively). Ensure proper compatibility before installation.
• Warranty Exclusions: The warranty does not cover defects related to the use of non-original inks, clogged or missing nozzles, misuse, neglect, improper storage, failure to perform periodic maintenance, improper loading of media, third-party applications, software, parts, components, or peripheral devices, and cosmetic defects.
• Maintenance Recommendations: To ensure optimal performance and longevity, it is recommended to change the head cables when installing a new printhead. Regular maintenance and adherence to user documentation guidelines are essential for preventing issues and maximizing the printhead's lifespan.

Conclusion

The Epson DX5 printhead is a top-tier component that combines advanced technology with versatile functionality. Its technical specifications make it an excellent choice for a wide range of industrial printing applications, delivering high-quality results with reliability and efficiency. By understanding its capabilities and following proper usage and maintenance practices, users can fully leverage the DX5 printhead's potential for their printing needs.
