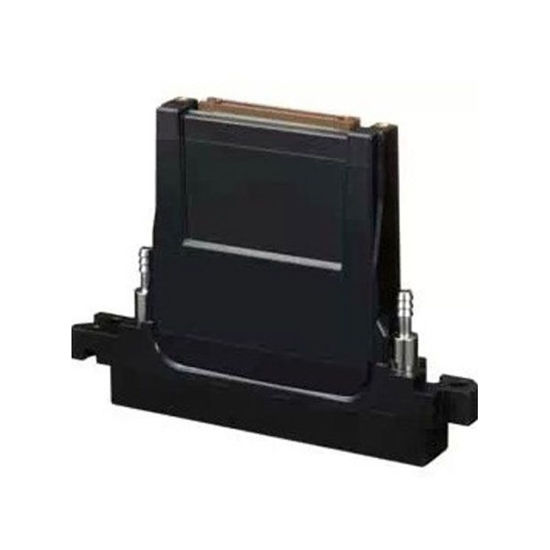

Konica KMHS1000 Printhead

The Konica Minolta KM HS1000 30PL printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted. The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. This printhead offers a Maximum Drive Frequency of 27kHz, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing. This printhead can be used as a replacement of the Konica Minolta KM1024i LHE. We recommend to change the head cables when installing a new printhead.

Environmentally-considerate Approved Green Product
This printhead incorporates only approximately one-third of the petroleum-derived materials and toxic chemicals used in the current KM1024 Series.

Specifications
• Technology: Piezo Drop On-Demand
• Native Resolution: 360 dpi
• Cal. Droplet Size: 30 pico litre
• Max. Drops in Greyscale: 8 drops
• Tot. Amount of Nozzles: 1024 (256 nozzles per line)
• Print Width: 72 mm
• Firing Frequency: 27 kHz
• Drive Voltage: 13+-3V
• Ink Compatibility: UV (White)
• Heater: integrated
• Dimensions: W131mm x D17mm x H94mm
• Weight: Approx. 150g

Country of origin : Japan
