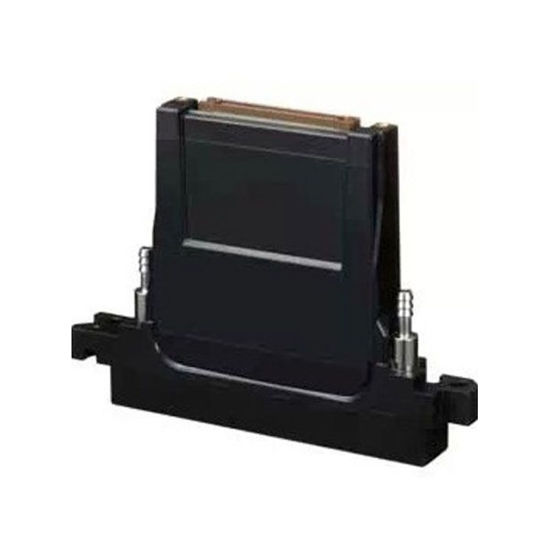

Konica KM1024i SHE 6PL Printhead

*Product is Discontinued, replacement is PPHKMH2000 - Konica KM HS2000 Printhead.*

The Konica Minolta KM1024i SHE printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted. The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. The Konica Minolta KM1024i SHE printhead offers a Maximum Drive Frequency of 60kHz, approximately 3 Times greater than that of the KM1024 Series, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing.

Environmentally-considerate Approved Green Product
The Konica Minolta KM1024i SHE printhead incorporates only approximately one-third of the petroleum-derived materials and toxic chemicals used in the current KM1024 Series. In addition, the nozzle unit surface area is the same as that of the KM1024 Series. We recommend to change the head cables when installing a new printhead.

Specifications
• Technology: Piezo Drop On-Demand
• Native Resolution: 360 dpi
• Cal. Droplet Size: 6 pl
• Max. Drops in Greyscale: 8 drops
• Tot. Amount of Nozzles: 1024 (256 nozzles per line)
• Print Width: 72 mm
• Typical Firing Frequency: 50 Khz
• Max Firing Frequency: 60 kHz
• Ink Compatibility: Solvent, Oil, UV inks.
• Heater: integrated
• Dimensions: W131mm x D18mm x H94mm
• Weight: Approx. 150g

Country of origin : Japan
