Product Description:

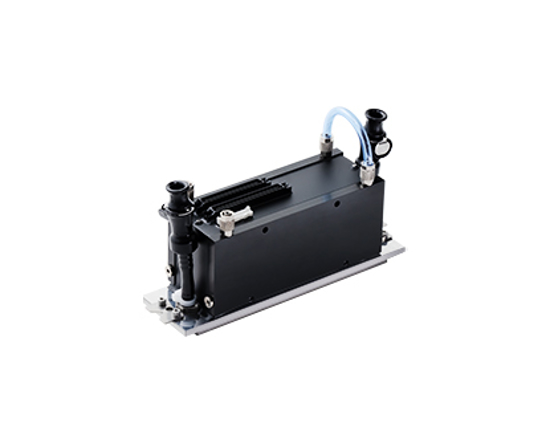

This original Kyocera KJ4A-EX1200-RC printhead is designed for ink with relatively high viscosity, such as UV curable ink. This series is best suited for applications involving a wide variety of media, such as offset surprint, label, and others.
The following items are expressly excluded from coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Specifications
- Ink Type:UV ink
- Maximum Drive Frequency (kHz): 64
- Resolution (dpi):1200dpi x 1200dpi
- Print Speed (m/min): 81,3
- Drop Volume (pL): Min. 2, max. 4
- Nozzle Recirculation: Yes
- Width×Length×Height (mm): 200×55.5×79.15
- Number of Nozzles: 5,116
- Effective Print Width (mm): 108.27
- Recommended Ink Viscosity (mPa*s): 6.0~7.0
- Country of origin: Japan
