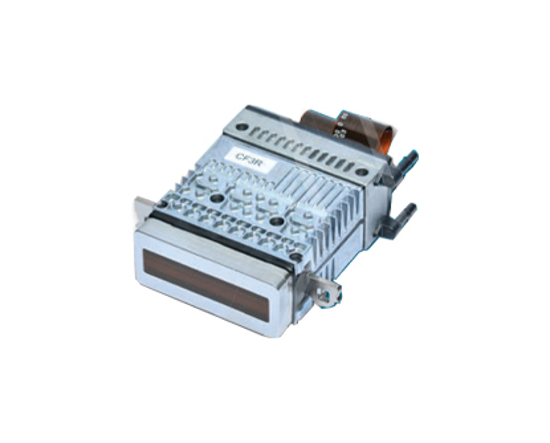

Toshiba CF3 Printhead

This Toshiba CF3 printhead has 300 npi/row with ink re-circulation through all channels. It is suitable for jetting ink with larger particle size and 1 color per head.

We recommend to change the head cables when installing a new printhead.

Specifications

• Print Method: Drop on demand piezo
• Ink Re-circulation Structure: ink re-circulation through all channels
• Print Width: 53.95mm
• Number of channels: 1278
• Nozzle resolution: 300npi/row
• Number of rows: 2
• Nozzle Spacing (Row to row distance): 7.94mm
• Grayscale level: 6 levels/0～5drops
• Drop Volume: 20pL/5drops
• Maximum drop volume: 3～4pL
• Frequency: 9.2kHz/5drops
• Power Supply Voltage for Driving the Head: +7V～+15V, -7V～-15V
• Power Supply Voltage for Driving Circuit: 5V, 24V
• Ink type: UV-curing & oil-based
• Built-in Temperature Sensor: included
• Head Cooling Method: Air-cooling
• Size, Weight: 96.7mm(W)×29.3mm(D)×100.7mm(H), 255g
• Country of origin : Japan
