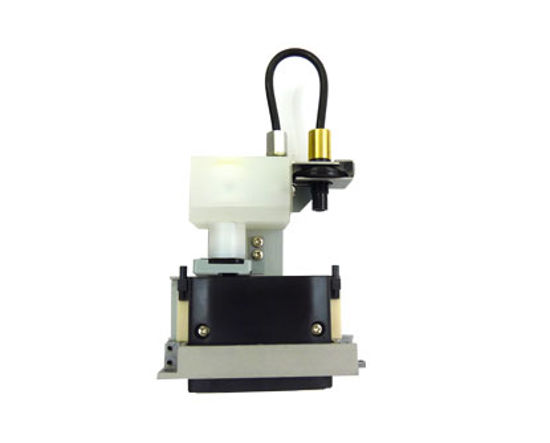

UJF-605C Head Assy - M005803

This UJF-605C printhead assy is suitable for the Mimaki UJF-605C printers. This is the original Mimaki part (number M005803).

We recommend to change the head cables when installing a new printhead.

This part is no longer available. The manufacturer has discontinued it with no replacement.

Product Specifications

• Technology: Multi-drop grayscale micro-piezo
• Grayscale levels: 8
• Active nozzles: 318
• Print swathe width: 53.6 mm
• Nozzle pitch: 169 μm
• Native resolution: 150 dpi
• Printhead weight: 148 g
• Dimensions: 85 x 70 x 23 mm
• Drop volume: 6 - 90 pl
• Typical firing frequency: 4.8 kHz
• Ink Compatibility: oil-based pigment ink and UV curable pigment ink
• Country of origin : Japan
