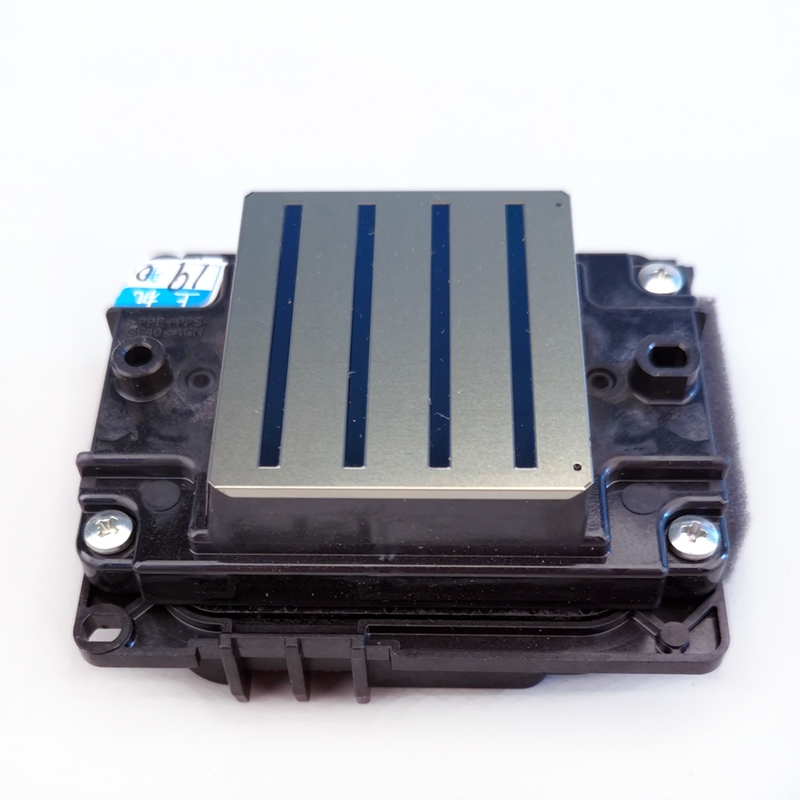

Epson I3200-A1 Printhead – 3200 Nozzles,600 npi,Aqueous Ink,PrecisionCore MicroTFP

Ink Type: Aqueous

Printhead Type: PrecisionCore MicroTFP printhead

Dimensions: 69.1 x 59.4 x 35.6 mm

Weight: 82 g

Number of Nozzles: 3200

Nozzle Pitch / Row: 1/300 inch

Nozzle Rows: 8 rows

Nozzle Resolution: 300 npi per row, 600 npi across 2 rows

Effective Print Width: 33.8 mm (1.33 inches)

Max. Number of Color Inks: 4 colors

Viscosity Range: 3–4 mPa·s

Positioning Mechanism: Reference hole

Droplet Ejection Performance:

Binary: 6 pl at 43.2 kHz

3 Levels Grayscale: 6.3 pl, 12.3 pl at 21.6 kHz

4 Levels Grayscale: 3.8 pl, 6.1 pl, 9.4 pl at 21.6 kHz

Key Features:

Utilizes PrecisionCore technology with high durability and consistent performance

Supports grayscale printing for smooth gradation and reduced graininess

MEMS manufacturing enables high precision and high-density nozzle layout (600 npi / 2 rows)

Precision-engineered nozzles and ink flow path ensure round, accurately placed droplets

Designed for high-resolution, high-speed aqueous inkjet printing applications
