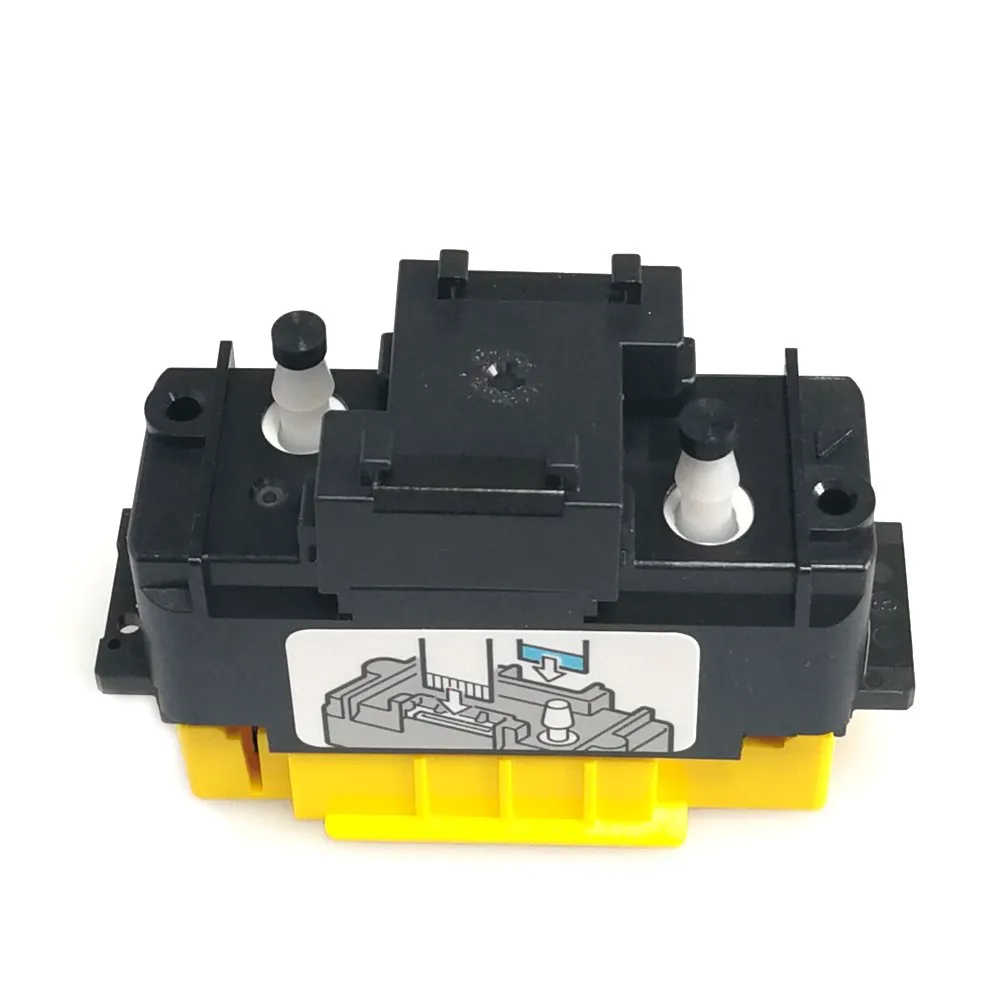

Ricoh GH2220 Printhead – High-Reliability Industrial Print Head for Aqueous & Solvent Inks

Ricoh GH2220 Printhead Description

The Ricoh GH2220 printhead is a high-performance industrial inkjet print head designed for aqueous and solvent-based inks, offering reliable operation across a wide range of applications.

It features a piston pusher mechanism with a metallic diaphragm plate, enabling precise control over ink droplet formation and consistent print quality.

With a print width of 32.4 mm (1.28") and 384 nozzles, the GH2220 delivers high-resolution output suitable for signage, textiles, coding, and marking.

The printhead supports binary mode (3–5 pl) and gray-scale mode (21±2 pl), providing flexibility in image detail and print speed.

It operates at a jetting frequency of up to 30 kHz in binary mode, and includes frame-abutting alignment for accurate multi-head configurations.

Built for durability, each nozzle is rated for 30 billion actuations, making it ideal for high-volume industrial printing environments.

Ricoh GH2220 Printhead Specifications

⚠️ Note: Results based on continuous jetting test using standard Ricoh test ink.

Typical Applications

• Digital signage and graphics
• Direct-to-textile printing
• Industrial coding and marking
• Labeling and packaging
• Specialty printing with aqueous or solvent inks

Alternative Names

• Ricoh GH2220 print head
• GH2220 inkjet head
• Ricoh piston pusher printhead
