Key Specs Nozzles: 1,280 (4 × 320 nozzles) Nozzle Density: Up to 600 npi Effective Configuration: 4 channels (likely 4-color) Droplet Sizes: 7 pl native, variable 7–35 pl Jetting Frequency: Up to 60 kHz

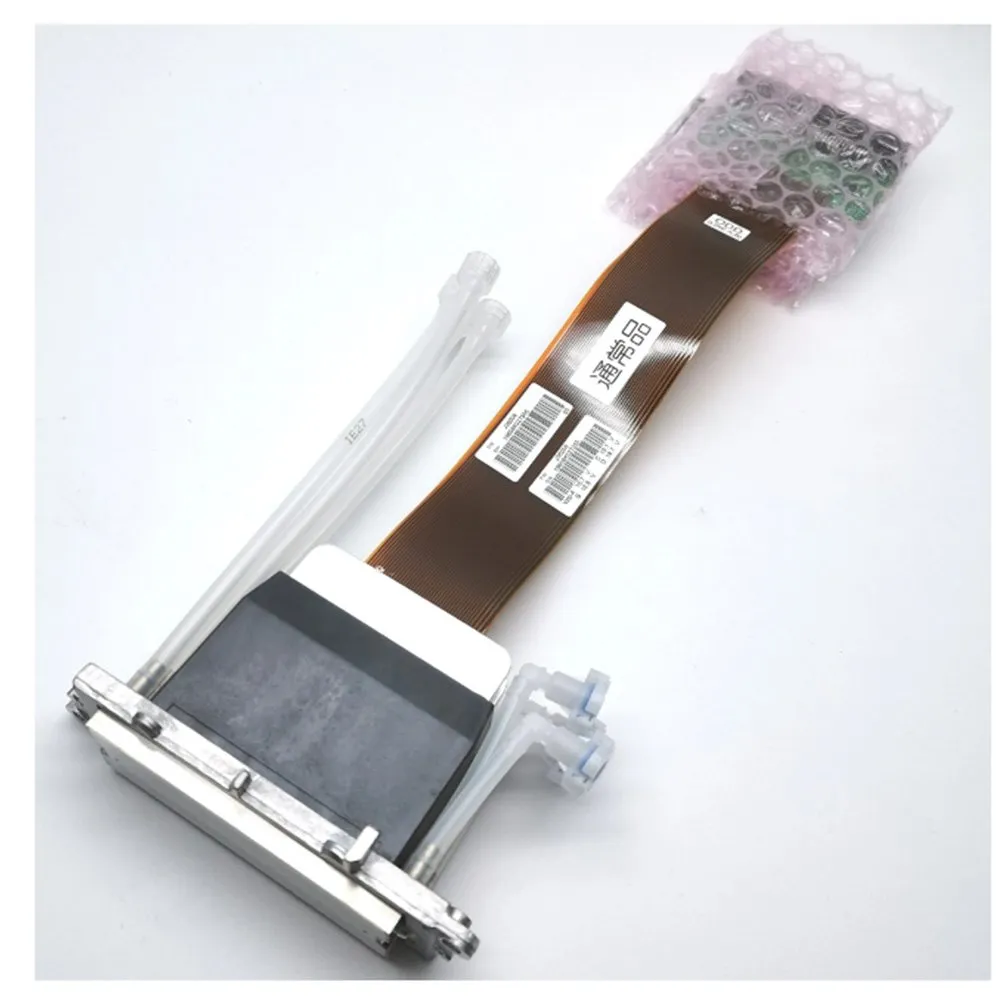

Mimaki SWJ-320 GEN5 Printhead Assy M022650 Description
This SWJ-320 GEN5 Assy Packaging – M022650 is suitable for Mimaki SWJ-320 printers. This packaging contains the assembly including tubes, valves, ink connectors, and brackets.
Mimaki SWJ-320 GEN5 Printhead Assy M022650 Specifications
| Head materials | SST, Nickel alloy and Epoxy Adhesive |
| Nozzle plate surface | Coated SST |
| Number of nozzles | 4 x 320 nozzles |
| Nozzle spacing | 0.1693 mm |
| Nozzle density | up to 600 npi |
| Piezo type | D33 Stacked PZT |
| Native drop volume | 7 pl |
| Drop volume range | 7 – 35 pl |
| Drop velocity | 7 m/s |
| Jetting frequency | Up to 60 kHz |
| Temperature control | Integrated Heater and Thermistor |
| Operator temperature range | Up to 80° C |
| Life | 100 billion actuations per nozzle |
| Dimensions | 89 x 25 x 69 mm (excluding cables) |
